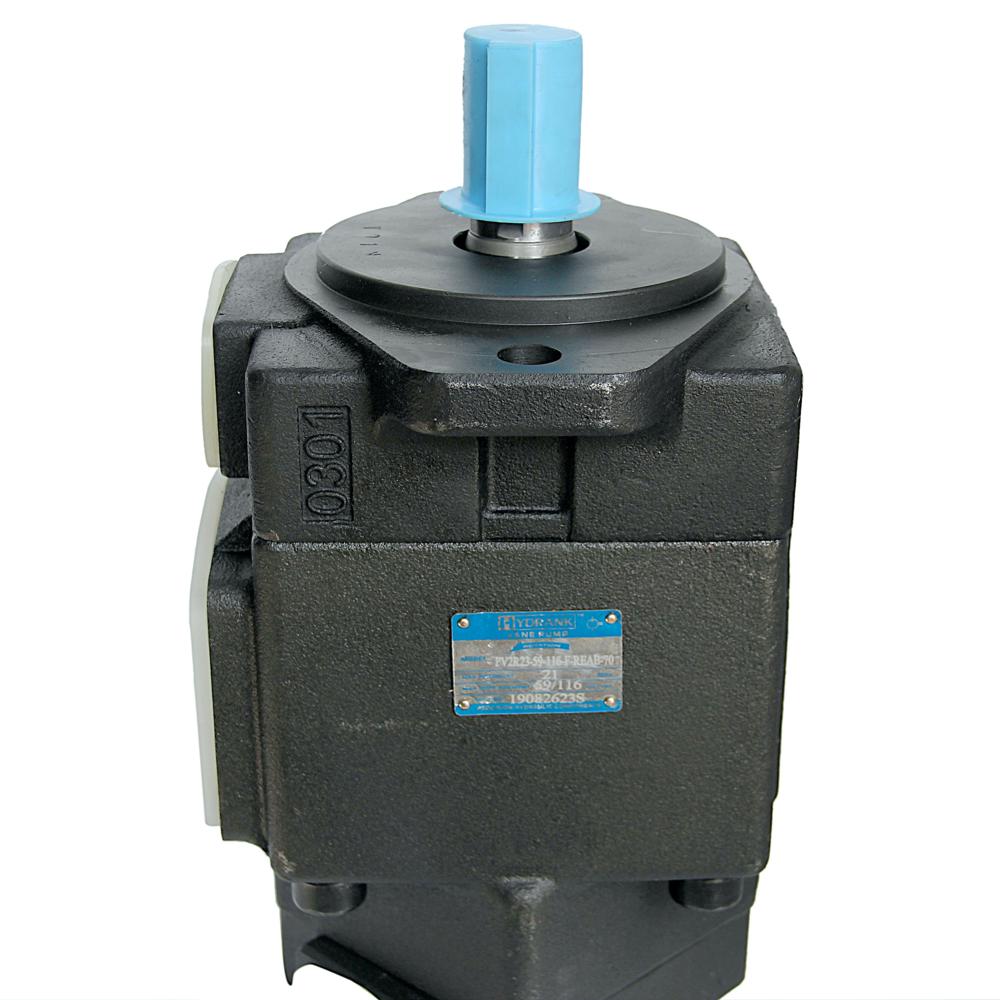

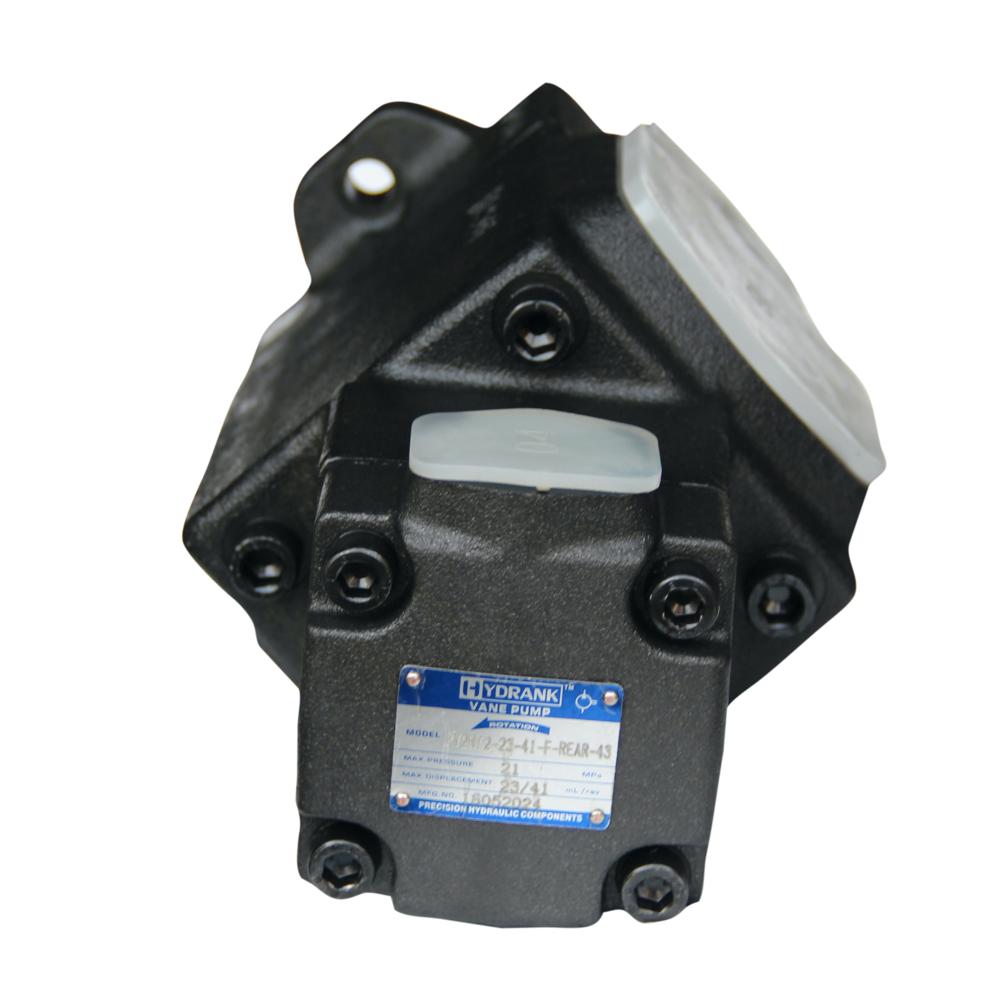

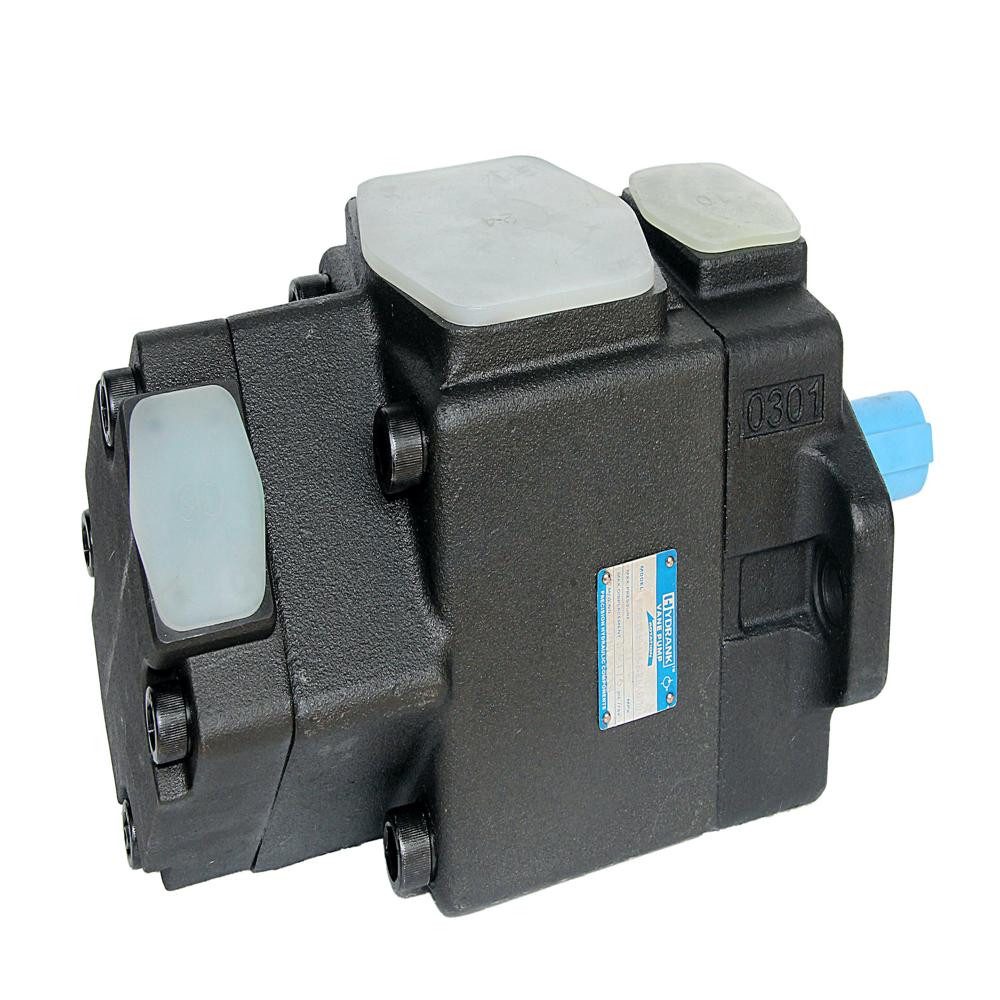

PV2R 23

Name: PV2R 23
Brand: SHRI ANK ENTERPRISE PVT. LTD.
Price: 31000.0 INR
Availability: InStock

Price 31000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PV2R 23 Specification

Features
High precision, compact design, durable

Discharge Pressure
21 MPa

Flow Rate
23 L/min

Mounting Type
Flange Mount

Theory
Vane Pump

Speed
1800 RPM

Material
Cast Iron

Structure
Single Vane

Standard
Precision Hydraulic Components

Weight
51.1 Kilograms (kg)

Pressure
21 MPa (210 bar)

Color
BLACK

Usage
Hydraulic Systems

Application
Industrial Hydraulic Applications

Priming
Self-priming

Pump Type
Hydraulic Vane Pump

Capacity
23.4 L/min

Port Connections
Standard SAE ports

Model
PV2R 23-41-F-REAR-43

Shaft Type
Keyed shaft

Service Life
Extended duty, maintenance-friendly design

Max Discharge
23.4 L/min

Pump Rotation
Clockwise (standard) / Counter-Clockwise available

Weight
Approx. 8.2 kg

Sealing Material
NBR (optional: Viton/others)

Corrosion Resistance
Yes

PV2R 23 Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cheque

Delivery Time
1 Days

Main Export Market(s)
Asia, North America

Main Domestic Market
All India

PV2R 23 About

We Can Offer One To One Pump Against Yuken's PV2R 23 Pump In Hydrank Brand. Our Pump Will Be 100% Interchangeable With Your Current Pump. Our Spares Are Also Interchangeable With Yuken's Pump

Specifications:

Product Name: HYDRANK Pumps PV2R 23
Maximum Pressure: 160 - 210 bar 2320 - 3050 Psi
Maximum Speed: 1800 rpm
Maximum Displacement: (P1 = 51.5 cc to 153 cc) (P2 = 25.3 cc to 63.7 cc)
Weight: 32 kgs

Features:

Corrosion resistance
High performance
Heavy casting
Low noise

Precision and Durability for Industrial Hydraulics

Engineered for reliability, the PV2R 23 hydraulic vane pump provides consistent operation even under extended duty cycles. Its cast iron construction ensures durability, while the self-priming feature simplifies setup and system integration. The pump's compact yet robust design makes it suitable for various high-demand hydraulic applications.

Versatile Compatibility and Simplified Maintenance

Adaptable to both clockwise and counter-clockwise rotation, this pump fits seamlessly into different system requirements. With standard SAE port connections, a keyed shaft, and flange mount, installation is straightforward. The maintenance-friendly design, along with extended service life and corrosion resistance, reduces downtime and operational costs for industrial users.

Ideal for the Indian Hydraulic Market

PV2R 23 is a preferred choice for distributors, suppliers, and wholesalers across India, supporting a broad range of hydraulic machinery. Its extended durability, high-precision engineering, and ability to handle industrial pressures make it a trusted component in hydraulic systems nationwide.

FAQ's of PV2R 23:

Q: How do I select the correct rotation direction for the PV2R 23 hydraulic vane pump?

A: The PV2R 23 offers both clockwise (standard) and counter-clockwise rotation options. Choose the rotation that matches your hydraulic system's needs by verifying the direction required by your drive mechanism before installation.

Q: What are the main advantages of using the PV2R 23-41-F-REAR-43 model in my hydraulic system?

A: This pump model delivers high precision, extended duty cycle, and simplified maintenance. Its robust cast iron construction, corrosion resistance, and self-priming capability ensure reliable performance and lower downtime in industrial applications.

Q: Can the PV2R 23 handle various sealing materials?

A: Yes, the standard PV2R 23 comes with NBR sealing material, but you can opt for other sealing materials like Viton for specialized applications. This flexibility allows compatibility with different hydraulic fluids and operating environments.

Q: When should I consider replacing the seals on the PV2R 23 pump?

A: It's recommended to inspect the sealing material during regular maintenance intervals. Replace seals if you notice fluid leakage, reduced efficiency, or after prolonged use-especially when operating under high pressure or with aggressive fluids.

Q: Where can I mount the PV2R 23 hydraulic pump?

A: The PV2R 23 is designed for flange mounting, making it easy to install on industrial hydraulic machinery. Its standard SAE port connections ensure compatibility with a wide range of hydraulic setups.

Q: What is the process of maintaining the PV2R 23 pump for optimal service life?

A: Routine inspection, keeping connections secure, monitoring fluid cleanliness, and timely seal replacement are key maintenance steps. The pump's maintenance-friendly design helps you easily access components during servicing, promoting long-term reliability.

Q: What benefits does the corrosion resistance of the PV2R 23 provide in industrial environments?

A: Corrosion resistance protects the pump from environmental and fluid-induced wear, extending its operational life and reducing the need for frequent repairs, especially critical in harsh or high-humidity industrial settings.
